Transfer VM From AWS EC2 to Akamai Using Disk Images

In modern cloud computing, virtual machine (VM) migration is a process that enables organizations to transition workloads across cloud platforms to optimize costs, improve performance, or enhance flexibility. By migrating VMs, organizations can pick and choose the capabilities of various cloud providers that best satisfy their business needs.

This guide focuses on using a disk image to transfer a VM from AWS EC2 to Akamai Cloud, suggesting how to plan, execute, and validate a migration.

Prerequisites

To follow along in this walkthrough, you’ll need the following:

• An account with Akamai Cloud
• A Linode API token (personal access token)
• The Linode CLI installed and configured
• Access to your AWS account with sufficient permissions to work with EC2 instances
• The AWS CLI installed and configured
• jq installed and configured

Before You Begin

1. If you do not already have a virtual machine to use, create a Compute Instance with at least 4 GB of memory. See our Getting Started with Linode and Creating a Compute Instance guides.

2. Follow our Setting Up and Securing a Compute Instance guide to update your system. You may also wish to set the timezone, configure your hostname, create a limited user account, and harden SSH access.

Preparing Your AWS EC2 Environment for Migration

Prepare your current AWS EC2 environment to ensure a smooth and efficient transition. As you assess your EC2 instance requirements, familiarize yourself with any limitations that Akamai Cloud imposes on resources imported into its systems.

Assess Current EC2 Instance Requirements

Capture the current configuration of your EC2 instance so that you can select the appropriate Akamai Cloud plan to ensure post-migration performance. In the AWS Console, navigate to the Instances page of the EC2 service.

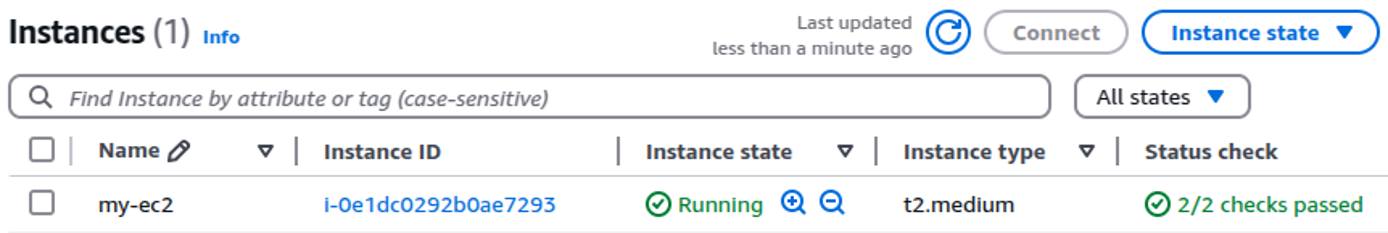

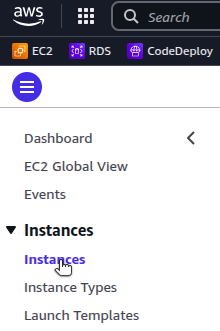

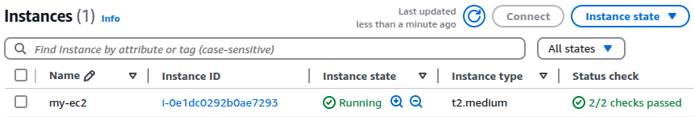

Find the EC2 instance you want to migrate. Note the instance ID and the instance type.

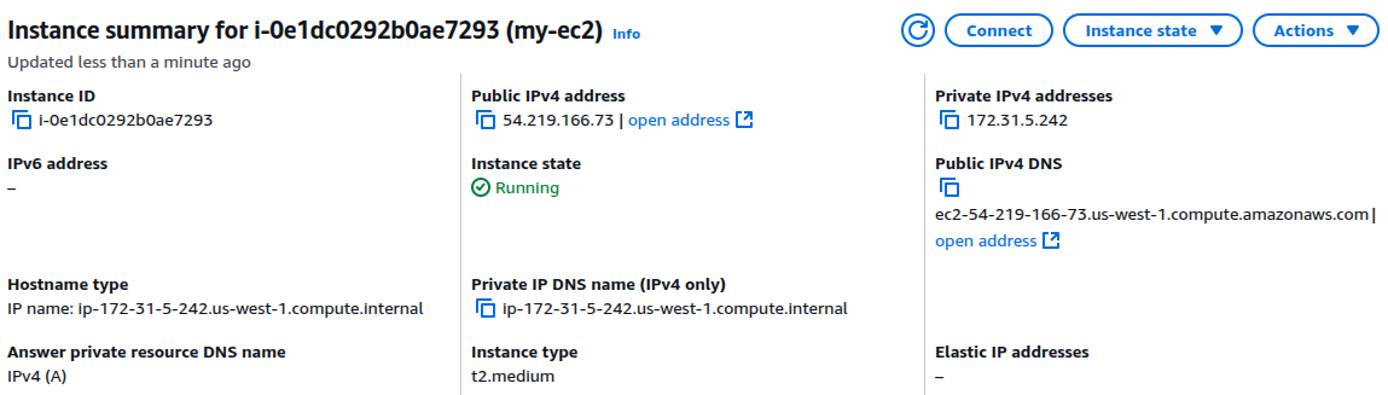

In the example above, the instance ID is i-0e1dc0292b0ae7293 and the instance type is t2.medium.

CPU and Memory Usage

To determine the CPU and memory usage of your EC2 instance, run the following command with the AWS CLI, inserting the appropriate instance type:

aws ec2 describe-instance-types \--instance-types=t2.medium \
    | jq '.InstanceTypes[0] | {VCpuInfo, MemoryInfo}'

{
  "VCpuInfo": {
    "DefaultVCpus": 2,
    "DefaultCores": 2,
    "DefaultThreadsPerCore": 1
  },
  "MemoryInfo": {
    "SizeInMiB": 4096
  }
}

Storage Usage

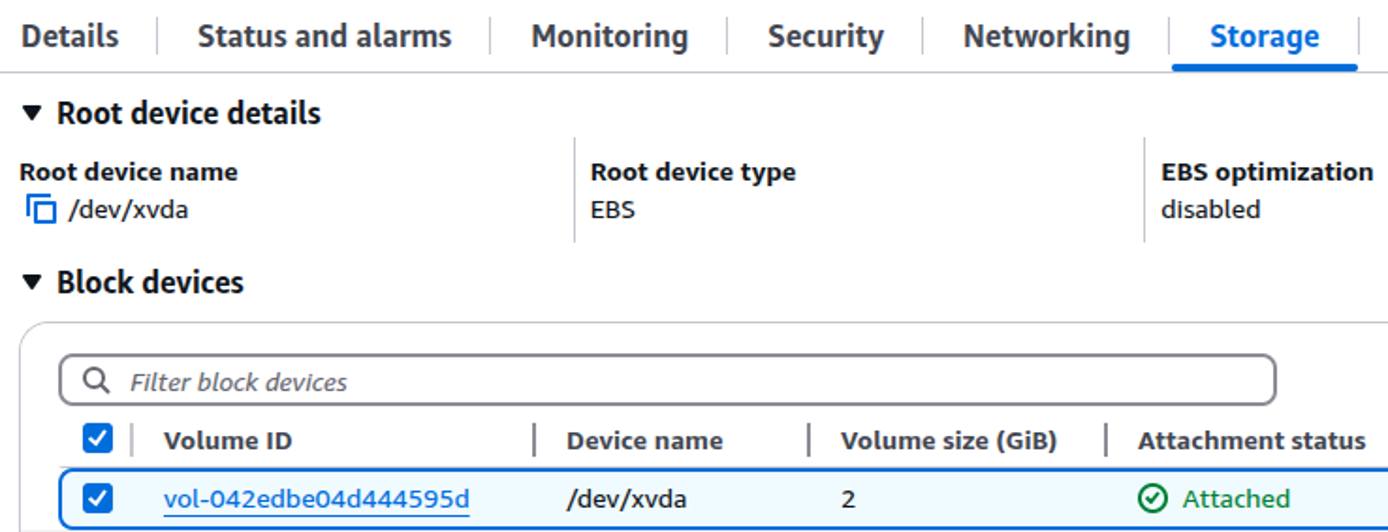

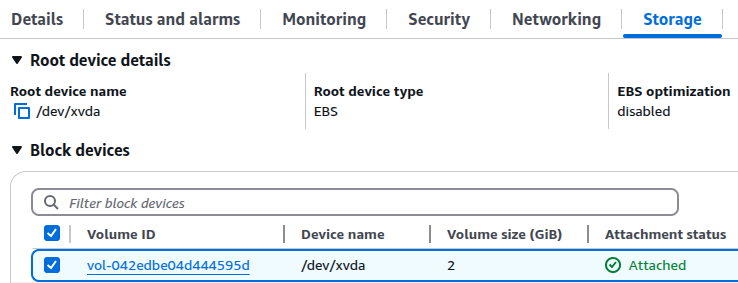

Navigate to the Storage tab for your EC2 instance.

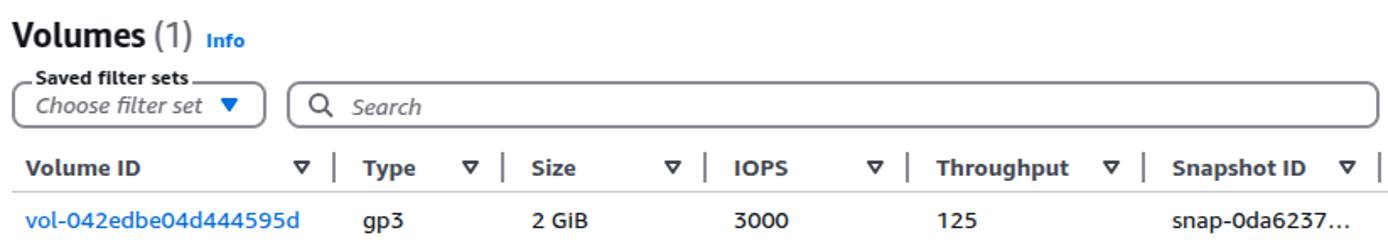

Click the listed volume to view additional details about storage.

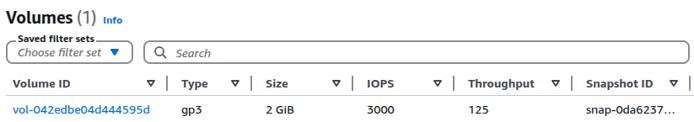

In the above example, the storage volume attached to the EC2 instance is type gp3, with a size of 2 GiB.

You can also obtain this information by running the following command, inserting the instance ID for your specific EC2 instance:

aws ec2 describe-volumes \
    --filters "Name=attachment.instance-id,Values=i-0e1dc0292b0ae7293" \
    | jq '.Volumes[0] | {Size, VolumeType}'

{
  "Size": 2,
  "VolumeType": "gp3"
}

IP Addresses

On the instance summary page for your EC2, you can find your instance’s public and private IP addresses.

You can also retrieve this information from the command line:

aws ec2 describe-instances
    --instance-ids i-0e1dc0292b0ae7293 \
    | jq \
      '.Reservations[0].Instances[0] | {PublicIpAddress,PrivateIpAddress}'

{
  "PublicIpAddress": "54.219.166.73",
  "PrivateIpAddress": "172.31.5.242"
}

Security Groups and Firewall Rules

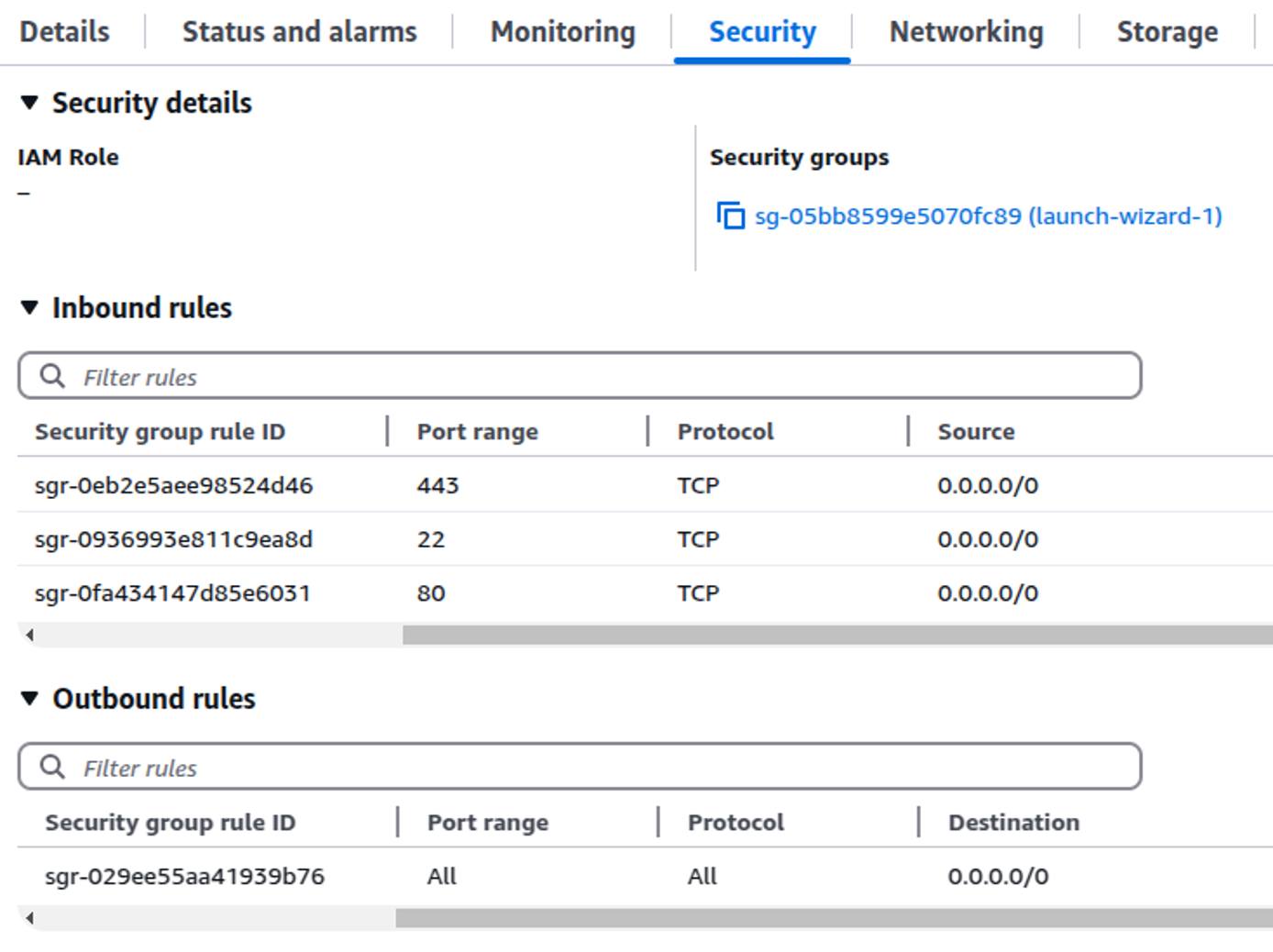

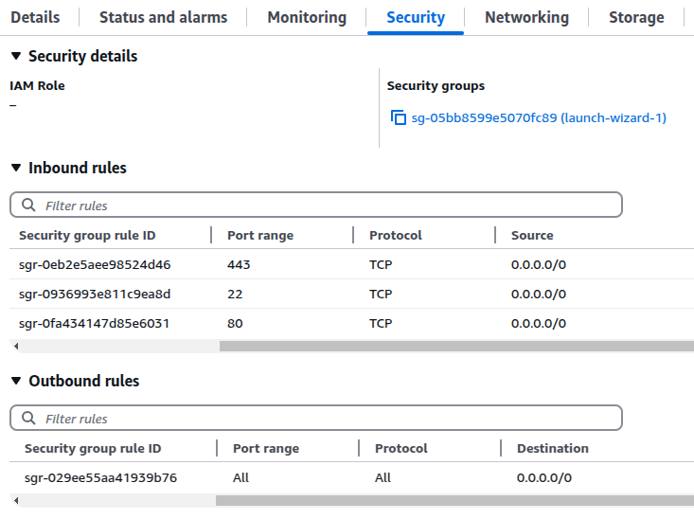

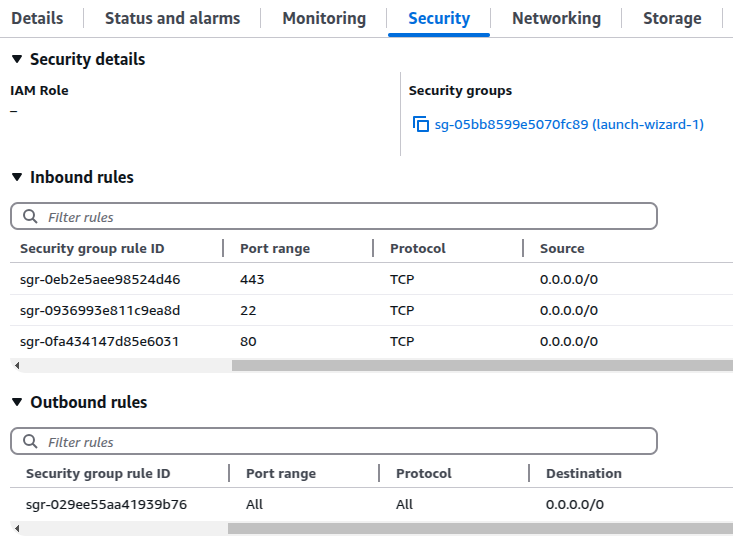

Navigate to the Security tab for information about associated security groups and firewall rules.

At the command line, you can use the security group rule IDs to obtain the detailed firewall rule information. For example:

aws ec2 describe-security-group-rules \
  --security-group-rule-ids \
    sgr-0eb2e5aee98524d46 \
    sgr-0936993e811c9ea8d \
    sgr-0fa434147d85e6031 \
    sgr-029ee55aa41939b76

{
    "SecurityGroupRules": [
        {
            "SecurityGroupRuleId": "sgr-0eb2e5aee98524d46",
            "GroupId": "sg-05bb8599e5070fc89",
            "GroupOwnerId": "153917289119",
            "IsEgress": false,
            "IpProtocol": "tcp",
            "FromPort": 443,
            "ToPort": 443,
            "CidrIpv4": "0.0.0.0/0",
            "Tags": []
        },
        {
            "SecurityGroupRuleId": "sgr-0936993e811c9ea8d",
            "GroupId": "sg-05bb8599e5070fc89",
            "GroupOwnerId": "153917289119",
            "IsEgress": false,
            "IpProtocol": "tcp",
            "FromPort": 22,
            "ToPort": 22,
            "CidrIpv4": "0.0.0.0/0",
            "Tags": []
        },
        {
            "SecurityGroupRuleId": "sgr-0fa434147d85e6031",
            "GroupId": "sg-05bb8599e5070fc89",
            "GroupOwnerId": "153917289119",
            "IsEgress": false,
            "IpProtocol": "tcp",
            "FromPort": 80,
            "ToPort": 80,
            "CidrIpv4": "0.0.0.0/0",
            "Tags": []
        },
        {
            "SecurityGroupRuleId": "sgr-029ee55aa41939b76",
            "GroupId": "sg-05bb8599e5070fc89",
            "GroupOwnerId": "153917289119",
            "IsEgress": true,
            "IpProtocol": "-1",
            "FromPort": -1,
            "ToPort": -1,
            "CidrIpv4": "0.0.0.0/0",
            "Tags": []
        }
    ]
}

Other Networking-Related Configurations

Determine if your EC2 instance has any associated load balancer resources or custom DNS configurations. Capture this information, as it may affect how you provision your Linode instance and configure its networking resources.

Back up Your Data on AWS EC2

Creating a comprehensive backup of your EC2 instance ensures you can restore your environment in case of unexpected issues during the migration. By assessing your instance requirements and creating backups, migrating existing VMs to Akamai Cloud can proceed with minimal risk.

AWS provides two approaches to creating a backup:

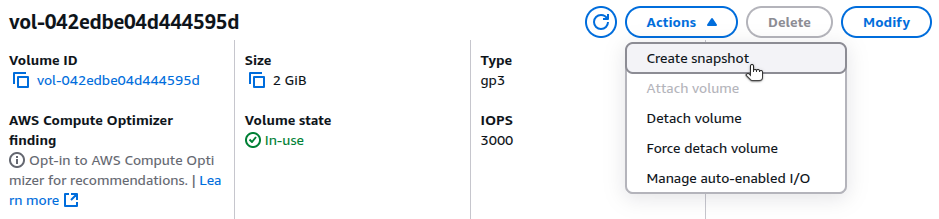

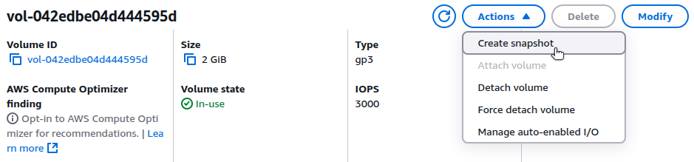

1. Create a snapshot: A snapshot captures a point-in-time copy of your data. Within the AWS Console, navigate to the details page for your EBS volume. Click Actions, then select Create Snapshot.

![](image12.png)

1. Create an Amazon Machine Image (AMI): An AMI provides a full backup of your EC2 instance, including its OS, applications, and configuration. You can also import this image to Akamai Cloud when migrating a VM, which is the approach this guide demonstrates.

Migrating to Akamai Cloud

Migrating from AWS EC2 to Akamai Cloud primarily involves capturing and exporting the instance image from AWS, then importing it when deploying a new Linode instance.

Export Your AWS EC2 Environment

Create AMI

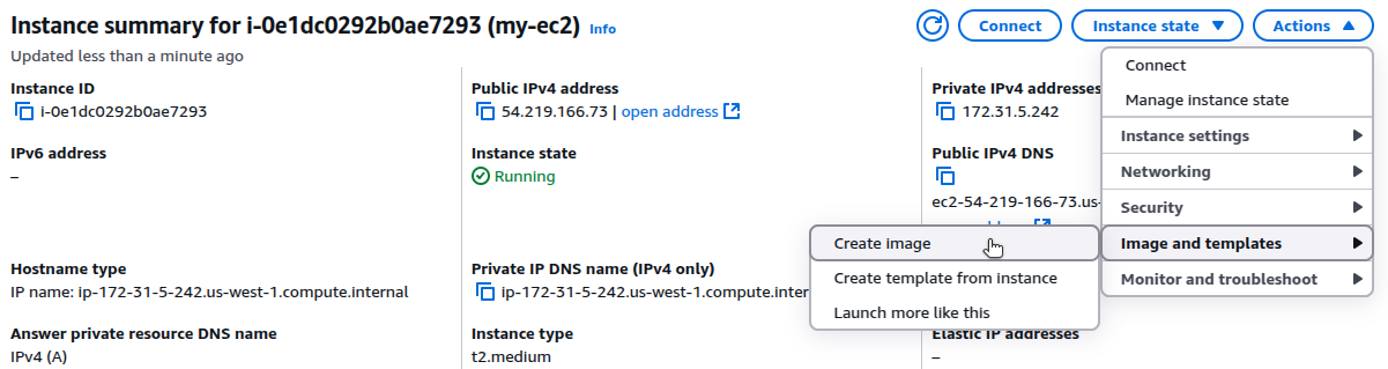

Create an AMI to export your EC2 instance as a transferable, virtual machine image. From the EC2 instance summary page, click Instance state > Image and templates > Create image.

Provide a name and description for your image. Then, click Create image.

To create an AMI from the command line, run the following command:

aws ec2 create-image \
    --instance-id i-0e1dc0292b0ae7293 \
    --name "ec2-pre-migration-image" \
    --description "EC2 instance prior to Linode migration" \
    --no-reboot

{
    "ImageId": "ami-0b5823d737dcd831a"
}

The --no-reboot flag is optional and ensures the instance does not reboot during the image creation process. If you prefer a clean shutdown, then remove this flag. The output of the command is the ID of the newly created image.

To list existing images and monitor image creation status, use the describe-images command:

aws ec2 describe-images --owner self

{
    "Images": [
        {
            ...
            "ImageId": "ami-0b5823d737dcd831a",
            "ImageType": "machine",
            "Public": false,
            "PlatformDetails": "Linux/UNIX",
            "UsageOperation": "RunInstances",
            "State": "available",
            "BlockDeviceMappings": [
                {
                    "DeviceName": "/dev/xvda",
                    "Ebs": {
                        "DeleteOnTermination": true,
                        "Iops": 3000,
                        "SnapshotId": "snap-0cfa25763b370690d",
                        "VolumeSize": 2,
                        "VolumeType": "gp3",
                        "Throughput": 125,
                        "Encrypted": false
                    }
                }
            ],
            "Description": "EC2 instance prior to Linode migration",
            "EnaSupport": true,
            "Hypervisor": "xen",
            "Name": "ec2-pre-migration-image",
            "RootDeviceName": "/dev/xvda",
            "RootDeviceType": "ebs",
            ...
            "SourceInstanceId": "i-0e1dc0292b0ae7293"
        }
    ]
}

The State of the image will transition from pending to available.

Create S3 Bucket

Once the AMI is available, export it as a virtual machine image. The export-image command from AWS supports the following disk formats:

• RAW (.img): The required format for Linode
• VMDK: The required format for VMWare
• VHD: The required format for Hyper-V

The image will be exported to AWS S3. Before you can export it, create an S3 bucket to store it.

aws s3 mb s3://ec2-backup-images-for-migration

make_bucket: ec2-backup-images-for-migration

Set up Permissions for Exporting AMI to S3

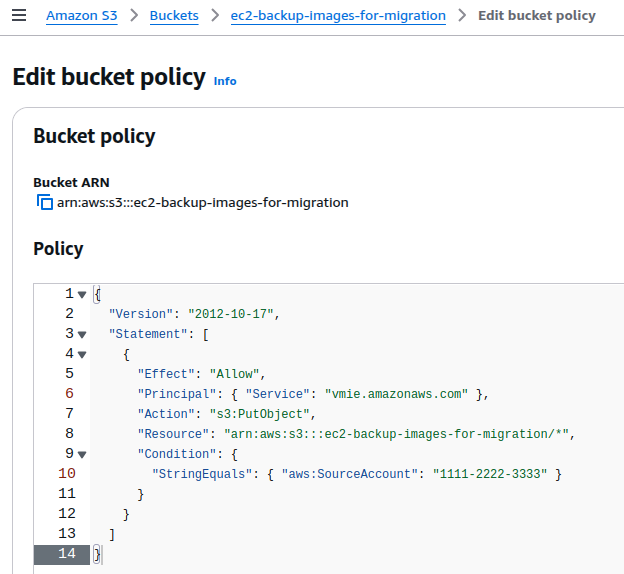

Grant permissions for the AWS EC2 service to export to the S3 bucket. Add the following policy to the newly created bucket:

1 2 3 4 5 6 7 8 9 10 11 12 13 14

{ "Version": "2012-10-17", "Statement": [ { "Effect": "Allow", "Principal": { "Service": "vmie.amazonaws.com" }, "Action": "s3:PutObject", "Resource": "arn:aws:s3:::BUCKET_NAME/*", "Condition": { "StringEquals": { "aws:SourceAccount": "AWS_ACCOUNT_ID" } } } ] }

Replace BUCKET_NAME and AWS_ACCOUNT_ID with the appropriate values.

AWS requires the vmimport role to export AMIs. If this role is missing, then create it manually. To create this role, first create a trust policy JSON file (named trust-policy.json) with the following content:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

{ "Version": "2012-10-17", "Statement": [ { "Effect": "Allow", "Principal": { "Service": "vmie.amazonaws.com" }, "Action": "sts:AssumeRole", "Condition": { "StringEquals":{ "sts:Externalid": "vmimport" } } } ] }

Assuming the file is saved in /home/user folder, run the following command to create the role:

aws iam create-role \
    --role-name vmimport \
    --assume-role-policy-document file:///home/user/trust-policy.json

Next, create a permissions policy (in a file named permissions-policy.json) with the following contents:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "s3:GetBucketLocation",
        "s3:GetObject",
        "s3:PutObject"
      ],
      "Resource": "arn:aws:s3:::BUCKET_NAME/*"
    },
    {
      "Effect": "Allow",
      "Action": [
        "ec2:CancelConversionTask",
        "ec2:CancelExportTask",
        "ec2:CreateImage",
        "ec2:CreateInstanceExportTask",
        "ec2:CreateTags",
        "ec2:Describe*",
        "ec2:ExportImage",
        "ec2:ImportInstance",
        "ec2:ImportVolume",
        "ec2:StartInstances",
        "ec2:StopInstances",
        "ec2:TerminateInstances",
        "ec2:ImportImage",
        "ec2:ImportSnapshot",
        "ec2:ModifySnapshotAttribute",
        "ec2:CopySnapshot",
        "ec2:RegisterImage",
        "ec2:CancelImportTask"
      ],
      "Resource": "*"
    }
  ]
}

Replace BUCKET_NAME with the appropriate value.

Attach this policy to the newly created vmimport role by running the following command:

aws iam put-role-policy \
  --role-name vmimport \
  --policy-name vmimport-permissions \
  --policy-document file:///home/user/permissions-policy.json

Export AMI to S3

Run the following command to export the AMI as a RAW disk image to your S3 bucket, making sure to insert your specific AMI ID and S3 bucket name:

aws ec2 export-image \
    --image-id AMI_ID \
    --disk-image-format RAW \
    --s3-export-location \
      S3Bucket=BUCKET_NAME,S3Prefix=exports/

{
    "DiskImageFormat": "RAW",
    "ExportImageTaskId": "export-ami-9dadaf55b2b57810t",
    "ImageId": "ami-0b5823d737dcd831a",
    "Progress": "0",
    "S3ExportLocation": {
        "S3Bucket": "ec2-backup-images-for-migration",
        "S3Prefix": "exports"
    },
    "Status": "active",
    "StatusMessage": "validating"
}

Exporting the image may take several minutes or more. To check on the status, run the following command, inserting the ExportImageTaskId from the result of the previous command:

aws ec2 describe-export-tasks \
    --export-task-ids export-ami-9dadaf55b2b57810t

{
    "ExportTasks": [
        {
            "ExportTaskId": "export-ami-9dadaf55b2b57810t",
            "ExportToS3Task": {
                "DiskImageFormat": "RAW",
                "S3Bucket": "ec2-backup-images-for-migration"
            },
            "InstanceExportDetails": {},
            "State": "active"
        }
    ]
}

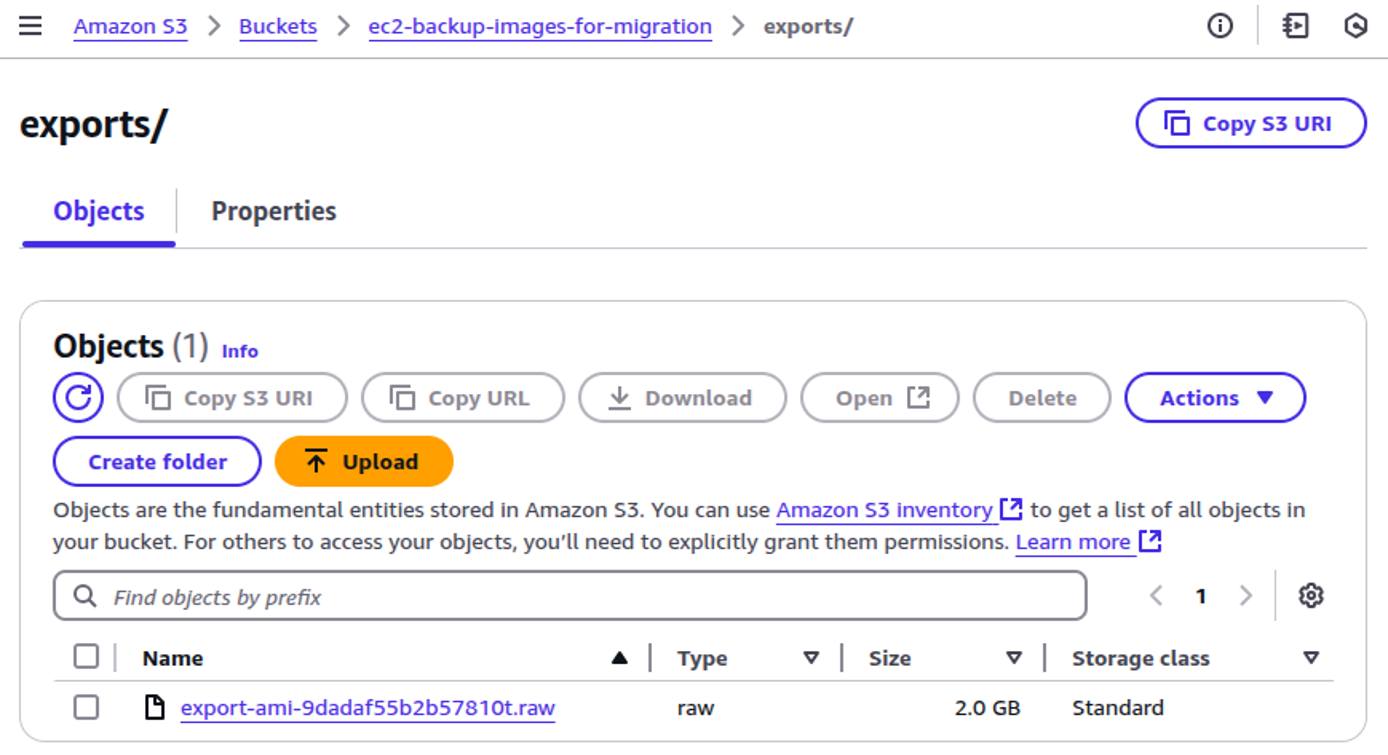

When the State value changes to completed, the image is ready for download from the S3 bucket.

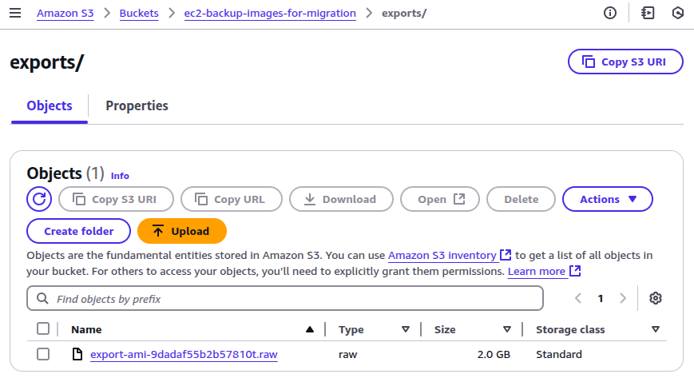

Download Image File from S3

Download the generated .raw file from S3 to your local machine. This can be done through the AWS Console or by running the following command:

aws s3 cp s3://BUCKET_NAME/exports/IMAGE_FILE ./

ls -h *.raw

-rw-rw-r-- 2.0G export-ami-9dadaf55b2b57810t.raw

Import and Deploy VM Image on Akamai Cloud

To provision a Linode Compute Instance by importing an existing VM image, ensure the image is in the proper format and compressed with gzip.

Prepare Image File for Import

The export task from AWS above produces an image with the .raw file extension. Linode expects an image file with an .img extension. To convert the file type, rename the file to use the .img extension, and it will be ready for import.

mv export-ami-9dadaf55b2b57810t.raw export-ami-9dadaf55b2b57810t.img

Compress the image using gzip to reduce its size:

gzip export-ami-9dadaf55b2b57810t.img

ls -h *.gz

-rw-rw-r-- 422M export-ami-9dadaf55b2b57810t.img.gz

Upload Compressed File to Akamai Cloud

You can use the Linode CLI to upload the compressed image file. Replace the .gz file with your specific file name. Specify the label, description, and region based on your specific use case.

linode-cli image-upload \
    --label "aws-ec2-migration-ami" \
    --description "AWS EC2 Import" \
    --region "us-lax" \
    ./export-ami-9dadaf55b2b57810t.img.gz

┌-----------------------┬-----------┬----------------┐
│ label                 │ is_public │ status         │
├-----------------------┼-----------┼----------------┤
│ aws-ec2-migration-ami │ False     │ pending_upload │
└-----------------------┴-----------┴----------------┘

The upload may take several minutes, depending on the size of your image and your internet speed.

Verify the Successful Image Upload

After the upload, ensure the image is successfully processed and available for use. Run the following command to list your private images:

linode-cli images list --is_public false

┌------------------┬-----------------------┬-----------┬--------┐
│ id               │ label                 │ status    │ size   │
├------------------┼-----------------------┼-----------┼--------┤
│ private/29293519 │ aws-ec2-migration-ami │ available │ 2048   │
└------------------┴-----------------------┴-----------┴--------┘

Verify that the status of the image is available. If the status is pending, wait a few minutes and then check again.

Launch a Linode Compute Instance from the Uploaded Image

Once the image is available, you can deploy it to a new Linode Compute instance. For this command, provide the ID of your uploaded image, which was displayed when running the previous command. In addition, provide the following:

• --label: A unique label for your instance.
• --region: The region for your instance.
• --type: The size of the instance to deploy.
• --root_pass: A unique, secure root password for your new instance.

The following example deploys a g6-standard-2 Linode, which has two cores, 80 GB disk, and 4 GB RAM with a 4000 Mbps transfer rate. Recall that the original AWS EC2 instance for this migration is a t2.medium, which has two vCPUs and 4 GiB RAM. Therefore, the g6-standard-2 Linode instance is comparable.

See the pricing page for Akamai Cloud for details on different Linode types.

linode-cli linodes create \
    --image IMAGE_ID \
    --label "migrated-from-aws-ec2" \
    --region "us-lax" \
    --type "g6-standard-2" \
    --root_pass "ROOT_PASSWORD"

┌-----------------------┬--------┬---------------┬--------------┐
│ label                 │ region │ type          │ status       │
├-----------------------┼--------┼---------------┼--------------┤
│ migrated-from-aws-ec2 │ us-lax │ g6-standard-2 │ provisioning │
└-----------------------┴--------┴---------------┴--------------┘

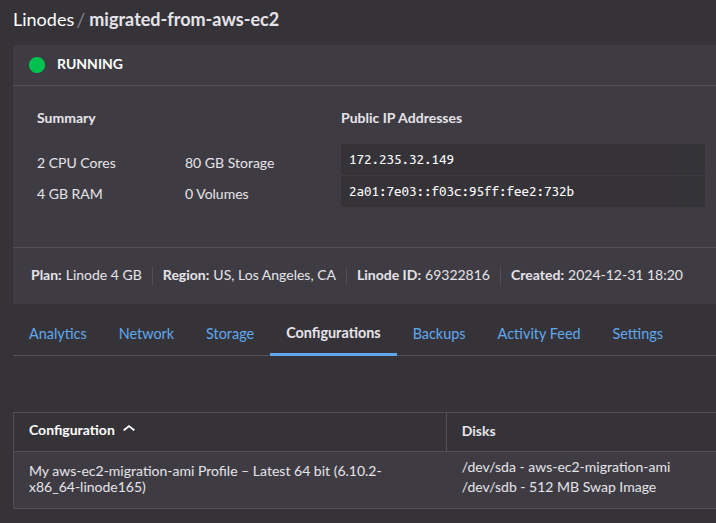

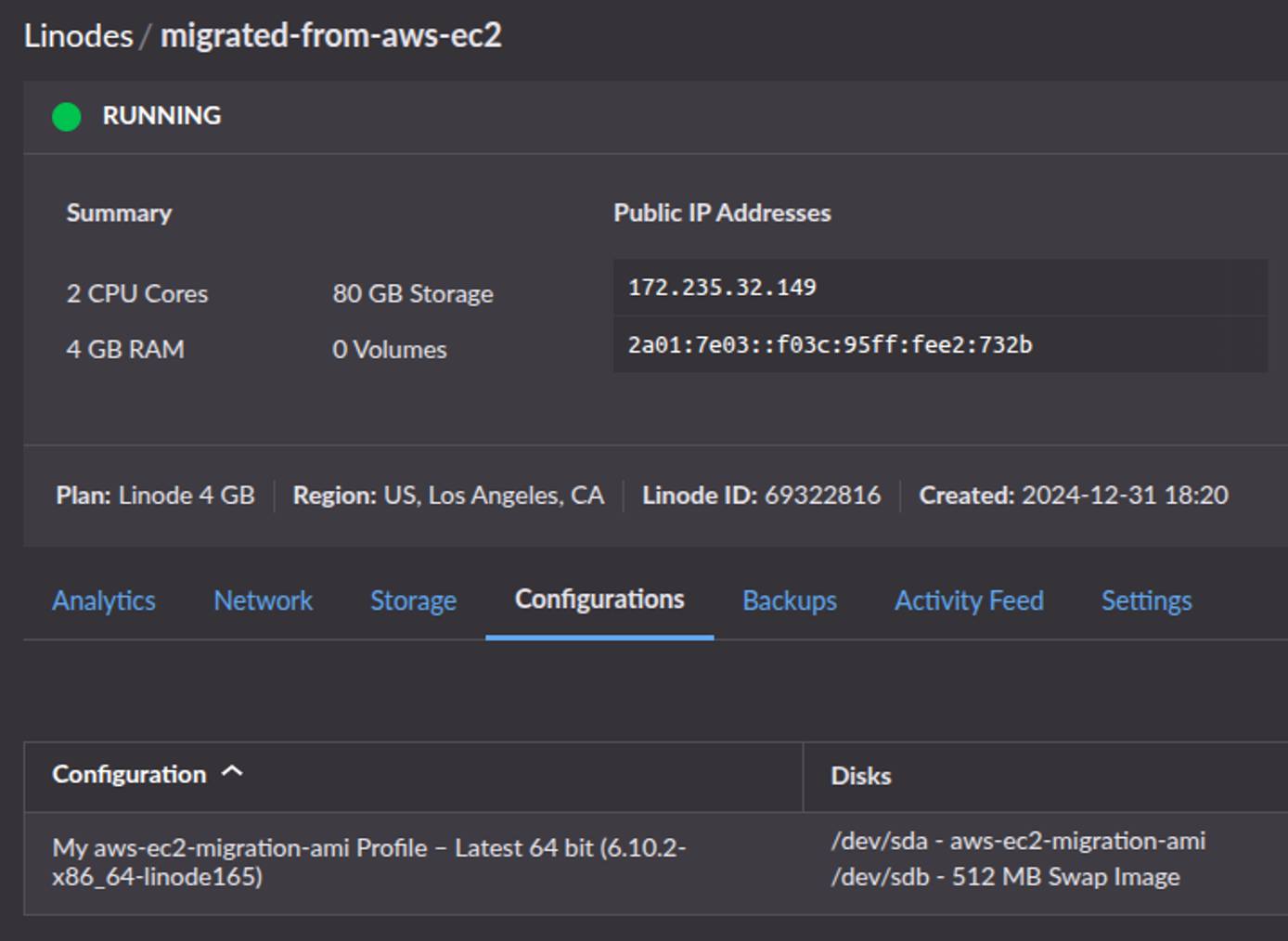

After several minutes, your Linode Compute Instance will be up and running, based on the exported VM image from your original cloud provider.

Configure and Validate the Linode Instance

By performing a migration with an AMI that captures your EC2 instance and volume in full, you ensure that the operating system and all installed software and services exist on the newly provisioned Linode. This reduces the amount of time needed to configure the Linode instance to closely match the environment of the original VM.

However, you must perform steps to configure networking to align with your needs. Recall the configurations from your original EC2 instance. As applicable, port these configurations to your Linode environment:

• IP Addresses
• Firewall Rules
• Load Balancing
• DNS

Linode does not have a direct equivalent to AWS security groups. However, you can still implement a firewall with rules to control traffic. Options include:

• Akamai Cloud Firewall, for setting up inbound and outbound rules on Linode Compute Instances, either through the Linode API or the Linode CLI.
• iptables or ufw, which run from within the Linode instance to manage the Linux kernel firewall (Netfilter).

Akamai Cloud provides NodeBalancers, which are equivalent to AWS Application Load Balancers (ALB). If you are migrating an EC2 instance with an ALB attached, you can implement a similar configuration for your Linode.

If you used AWS Route53 to implement DNS rules to route traffic to your EC2 instance, then you will need to modify your DNS settings to ensure traffic routes to your new Linode instance. This may involve pointing nameservers to Akamai Cloud and creating DNS rules within the Akamai Cloud Manager.

After completing your configurations, test your Linode instance to verify that the migration was successful. Validation steps may include:

• Check Running Services. Ensure that all critical services, such as web servers, databases, and application processes are running as expected and configured to start on boot.
• Test Application Functionality. Access any applications on the new Linode through their web interface or API endpoints to confirm that they behave as expected, including core functionality and error handling.
• Inspect Resource Utilization. Monitor CPU, memory, and disk usage on the Linode to ensure the system performs within acceptable thresholds post-migration.
• Validate DNS Configuration. Ensure DNS changes (if made) are propagating correctly, pointing to your Linode instance, and resolving to the expected IP addresses.
• Check External Connectivity. Verify that the instance can access any required external resources, such as third-party APIs, databases, or storage, and that outbound requests succeed.
• Review Logs. Examine system and application logs for errors or warnings that might indicate migration-related issues.
• Backup and Snapshot Functionality. Confirm that backups and snapshots can be created successfully on Linode to safeguard your data post migration.
• Verify Externally Attached Storage: Ensure that any additional storage volumes, block devices, or network-attached storage are properly mounted and accessible. Check /etc/fstab entries and update disk mappings as needed.

Additional Considerations

Cost Management

Review the pricing for your current AWS EC2 instance (compute, storage, and bandwidth). Compare this with the pricing plans for Akamai Cloud. Use Akamai’s Cloud Computing Calculator to estimate potential costs.

Data Consistency and Accuracy

Verify that the Linode migrated from the image export contains all necessary files, configurations, and application data. Double check for corrupted or missing files during the image export and upload process. Verification steps may include:

• Generate and Compare File Checksums: Use tools like md5sum to generate checksums of critical files or directories on both the source VM and the migrated Linode. Ensure the checksums match to confirm data integrity.
• Count Files and Directories: Use find or ls commands to count the number of files and directories in key locations (e.g. find /path -type f | wc -l). Compare these counts between the source and destination to identify any discrepancies.
• Check Application Logs and Settings: Compare configuration files, environment variables, and application logs between the source and the destination to confirm they are identical or appropriately modified for the new environment. Common locations to review may include:

  Application	Configuration	Location
  Apache Web Server	Main	/etc/apache2/apache2.conf
  	Virtual hosts	/etc/apache2/sites-available
  		/etc/apache2/sites-enabled
  NGINX Web Server	Main	/etc/nginx/nginx.conf
  	Virtual hosts	/etc/nginx/sites-available
  		/etc/nginx/sites-enabled
  Cron	Application	/etc/cron.d
  	System-wide cron jobs	/etc/crontab
  	User-specific cron jobs	/var/spool/cron/crontabs
  MySQL/MariaDB	Main	/etc/mysql
  PostgreSQL	Main	/etc/postgresql
  SSH	Main	/etc/ssh/sshd_config
  Networking	Hostname	/etc/hostname
  	Hosts file	/etc/hosts
  Rsyslog	Main	/etc/rsyslog.conf

• Review Symbolic Links and Permissions: Use CLI tools and commands to confirm that symbolic links and file permissions on the migrated Linode match those on the source VM. Examples include:

  Description	Command
  List all symbolic links in folder (recursive)	ls -Rla /path/to/folder | grep "->"
  Calculate md5 hash for all files in a folder, then sort by filename and write to file. Then, compare files from both VMs using diff.	find /path/to/folder/ -type f -exec md5sum {} + | sort -k 2 > hashes.txt
  Write to file the folder contents (recursive) with permissions, owner name, and group name. Then, compare permissions files from both VMs using diff.	tree /path/to/folder -fpuig > permissions.txt

After deploying your Linode, confirm that configurations (network settings, environment variables, and application dependencies) match the original VM to avoid runtime issues.

Security and Access Controls

AWS IAM roles govern instance access. Migrate these roles and permissions to Linode by setting up Linode API tokens and fine-tuning user permissions.

Use the Linode Cloud Firewall or existing system firewall on your instance to restrict access. Ensure SSH keys are properly configured, and disable root login if not required. Map AWS security group policy rules to your firewall for consistent protection.

Alternative Migration Options

This guide covered migrating a VM by creating a disk image of the original AWS EC2 instance and importing that image to Akamai Cloud as the basis of a new Linode Compute Instance. When cloud provider restrictions or image size limits make this approach unavailable, consider other migration options, including:

• Rclone: For example, provision a Linode Compute Instance with resource levels comparable to your original VM. Then, use rclone—a command line utility for managing files in cloud storage—to move all data from your original VM to your new Linode. This can effectively move your workloads from your AWS VM to your Linode.

• IaC: You can also leverage infrastructure-as-code (IaC) and configuration management tools to streamline your migration process. Tools like Ansible, Terraform, Chef, and Puppet can help you automatically replicate server configurations, deploy applications, and ensure consistent settings across your source and destination VMs. By using these tools, you can create repeatable migration workflows that reduce manual intervention and minimize the risk of configuration errors during the transition.

• Containerization: Another option is to containerize any workloads on your original VM. These containerized images can be run in the Akamai Cloud. For example, you can provision a Linode Kubernetes Engine (LKE) cluster to host and run these containers, thereby removing the need for a VM.

Resources

AWS:

• EC2 export-image documentation

Akamai Cloud:

• Linode CLI and Object Storage
• Uploading an image
• Deploying an Image

Other:

• QEMU Disk Imaging Utility
• rclone

More Information

You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.

• Link Title 1
• Link Title 2
